VOLVO ECR58

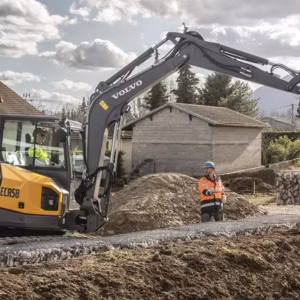

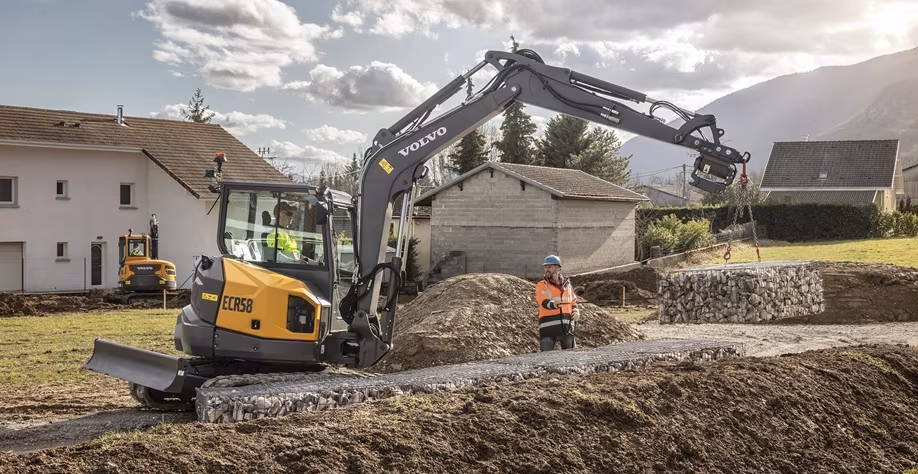

VOLVO ECR58 – SHORT RADIUS EXCAVATOR

Increased Capability for Demanding Urban Projects

The Volvo ECR58 short radius excavator builds on the strengths of the ECR58, offering increased operating weight, lifting capacity, and digging power while retaining a compact rear swing profile.

Designed for demanding applications, the ECR58 delivers high productivity in confined or high-traffic environments.

---

Technical specifications for ECR58

Here are the key specifications for this product model. Want more details? Download the brochure or contact us.



Engine
Volvo D2.6H

Gross Power
35.5 kW

Net Power
35 kW

…at Engine Speed
2,200 rpm

Operating Weight
5,840 kg

Bucket Capacity
0.11 m³

Travel Speed, Low / High
2.6 / 4.5 km/h

Slewing Speed
8.7 rpm

Breakout Force
41.9 kN

Tear Out Force (Arm Breakout Force)
28.4 kN

Overall Width
2,000 mm

Overall Length
5,193 mm

Main Hydraulic Pump Max. Flow
143 l/min

Boom Swing Angle, Left / Right
75 / 55 °

---

Performance & Productivity

The ECR58 offers excellent digging forces and smooth, responsive hydraulics that support fast cycle times and consistent output. Its stable design enables confident lifting and excavation, even when working close to structures or live traffic.

Precise control allows operators to complete detailed tasks efficiently while maintaining high overall productivity.

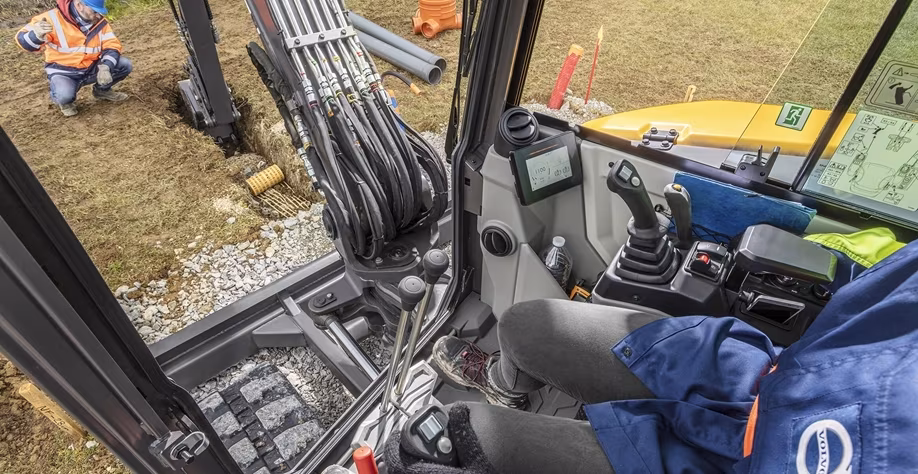

Operator Environment

The operator cab provides excellent visibility, intuitive controls, and a comfortable working environment. Ergonomic layout and reduced vibration contribute to improved operator efficiency and reduced fatigue.

Durability & Reliability

Reinforced components and protected systems ensure the ECR58 can withstand intensive use in harsh working conditions. Volvo’s high manufacturing standards help reduce downtime and extend service life.

Efficiency & Ownership

Fuel-efficient operation and straightforward maintenance routines help keep operating costs predictable and manageable. The ECR58 is well suited to contractors and fleet operators focused on long-term value.

Applications

• Urban construction and infrastructure
• Utilities and drainage
• Groundworks and foundations
• Recycling and material handling

Why Choose the ECR58?

The ECR58 combines strong performance, compact design, and operator comfort, making it a dependable choice for demanding projects where space and productivity are equally important.
