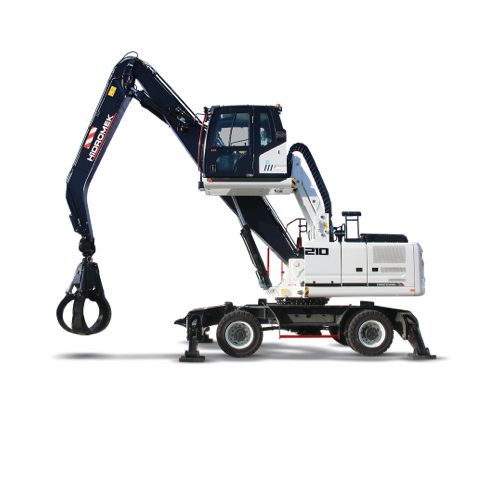

SPECIAL PURPOSE EXCAVATOR – HMK 210 W MH

HIDROMEK – HMK 210 W MH

H4 Series HMK 210 W MH introduces innovations such as improved performance, ease of control and versatility.

It allows the operator to have perfect command ability and reliability and ensures low fuel consumption, easy maintenance and operator comfort. Along with other pieces of equipment, it is the leader in its class.

---

ADDITIONAL FEATURES

Cab Raising
2400 mm

---

ENGINE

Brand – Model
ISUZU 4HK1X

Type
Water cooled diesel engine, 4 cycles

Maximum Power
172 HP (128 kW)@2000 rpm

Maximum Torque
670 Nm @1600 rpm

Displacement
5193 cc

Number of cylinders
4

Bore x Stroke
115 x 125 mm

Emission Class
EU: Stage V

---

HYDRAULIC SYSTEM

Type
2 axial piston type pumps with double variable displacement and inclined plate

Maximum Flow
2 x 233 L/min

Pilot Pump
Gear type, 20 L/min

Attachment
350 kgf/cm²

Power Boost
370 kgf/cm²

Travel
370 kgf/cm²

Swing
306 kgf/cm²

Pilot
40 kgf/cm²

---

SWING SYSTEM

Swing Speed
11.90 rpm

---

TRAVEL

Maximum Drawbar Pull
11,120 kgf

High Speed
31 km/h

Low Speed
7.7 km/h

---

WORKING DIMENSIONS

Grapple
2350 mm

Maximum Vertical Digging Depth
4270 mm

Maximum Digging Reach
11020 mm

Maximum Reach at Ground Level
10.81 m

Boom Dimension
6600 mm

Arm Dimensions
4600 mm

Maximum Dumping Height
3130 mm

---

OPERATING WEIGHT

Operating Weight
24,450 kg

---
