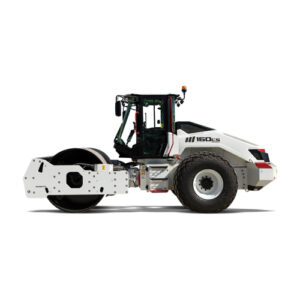

SOIL COMPACTOR – HMK 160 CS

HİDROMEK soil compactors overcome hard works easily with extreme compaction performance.

HMK 110 CS, HMK 130 CS and HMK 160 CS Soil Compactors having maximum usability and high functionality in various applications enable to work efficiently and with high performance in many areas such as public services and road construction works as well as construction sites of industrial, commercial and large residential areas.

Maximum Power 154 HP (115 kW) @2200 rpm

Maximum Torque 609 Nm @1600 rpm

Drum (front axle load) 10,700 kg

Operating Weight 16,200 kg

Need a Price or Availability?
Simply request a price or speak to our team, we’ll respond within 1 working hour.

📞 01634 867 777
📧 enquiries@langhamcontracting.co.uk

Request a Price

Description
Downloads

HIDROMEK – HMK 160 CS

Superior Compression! Superior Efficiency!

HİDROMEK soil compactors work efficiently and with high performance by providing high level of compaction. In working areas, they make the necessary compaction in accordance with the structure of the soil with minimum number of passes.

Having two working range as high eccentric moment and low eccentric moment, HİDROMEK soil compactors enable to compact different types of material with these features. While high eccentric moment provides effective operation on thick soil layer with high vibration energy, low eccentric moment offers superior surface sealing in the final compaction process allowing thin layers and fine works to be done easily.

HİDROMEK soil compactors having high compaction feature in their class also increase performance in all conditions with their superior climbing ability on slopes.

ENGINE
Brand – Model
DEUTZ

Maximum Power
154 HP (115 kW) @2200 rpm

Type
Diesel Engine

Maximum Torque
609 Nm @1600 rpm

Displacement
4038 cc

Number of Cylinders
4 in line

Bore x Stroke
101 mm x 126 mm

Emission Class
Stage V

STEERING SYSTEM
Oscillation angle
± 12˚

Articulation angle
± 35˚

TYRES
Rear Tyres
23.1-26 12 PR

VIBRATION
Vibration frequency, for high amplitude/for low amplitude
26.5 / 28.5 Hz

Amplitude, high/low
2.20/0.9 mm

Centrifugal force, for high amplitude/for low amplitude
334/154 kN

DRIVING SPEED
1st Gear
4 km/h

2nd Gear
6 km/h

3rd Gear
7 km/h

4th Gear
12 km/h

Maximum slope with vibration / without vibration
% 45 / % 48

WEIGHT
Drum (front axle load)
10,700 kg

Operating Weight
16,200 kg

Wheels (rear axle load)
5,500 kg

If you’d like to know more information about the Hidromek HMK160 SC, or need help choosing the right specification for your project, please get in touch with our team. We’re here to provide expert advice, availability, and pricing, and can help you find the best solution for your requirements quickly and efficiently.
