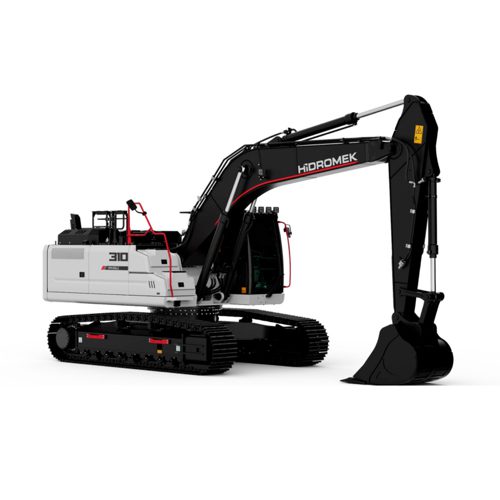

HIDROMEK – HMK 310 LC

More work within less time

17 % More productive*
Shortening the work cycle time with bigger bucket capacity and speed, H4 Series carry the productivity to the top level with their new technology.

7% More efficient*
With improvements to the attachment and hydraulic group, H4 Series excavators ensure more work within less time.

10% Faster*
With faster hydraulic movements due to developed hydraulic system design, H4 Series excavators ensure more work within less time.

HİDROMEK’s modern production facilities and going through sensitive quality-control processes, H4 Series excavators have excellent durability.

Safe Working Environment

ROPS & FOPS Cabin
Having the standards of ROPS (Roll Over Protective Structure) & FOPS (Falling Object Protective Structure), H4 Series excavators provide maximum safety and durability.

Wide Vision Capacity
Designed with giving special importance to occupational safety, H4 Series ensure excellent vision by minimising the blind spot on the side and rear cameras. Along with the increase in the number of led headlights, the night vision is significantly improved on H4 Series excavators; in addition, there are also red handles and warning labels providing maximum safety for the operator.

Audio Warning Systems
H4 Series excavators enable safer working environment with their automatic starting horn, swing warning system and travel warning system.

*The data are prepared in comparison with the previous series in HP mode.

OPERATING WEIGHT

Operating Weight
32,100 kg

ENGINE

Maximum Power
264 HP (197 kW) @1900 rpm

Maximum Torque
1050 Nm @1500 rpm

Brand – Model
ISUZU-6HK1X

Type
Water-cooled, 4 cycle, 6 cylinders, line type direct injection, turbocharger, intercooler, electronic diesel engine

Number of cylinders
6

Bore x Stroke
115 x 125 mm

Displacement
7790 cc

Emission Class
EU: Stage V

HYDRAULIC SYSTEM

Pump Type
2 axial piston type pumps with double variable displacement and inclined plate

Maximum Flow
2 x 266 L/m

Pilot Pump
Gear type, 30.5 L/min

Attachment
350 kgf/cm²

Power Boost
380 kgf/cm²

Travel
350 kgf/cm²

Swing
285 kgf/cm²

Pilot
40 kgf/cm²

SWING SYSTEM

Swing Speed
10.4 rpm

TRAVEL

Maximum Drawbar Pull
25,460 kgf

High Speed
5.1 km/h

Low Speed
3.0 km/h

DIGGING PERFORMANCE

Bucket Digging Force (ISO)
21,300 kgf

Bucket capacity
1.6 m³

Arm Breakout Force (ISO)
17,800 kgf

WORKING DIMENSIONS

Boom Dimension
6280 mm

Arm Dimension
2500 mm

Maximum Digging Depth
6760 mm

Maximum Reach at Ground Level
10150 mm

If you’d like to know more information about the Hidromek HMK310 LC, or need help choosing the right specification for your project, please get in touch with our team. We’re here to provide expert advice, availability, and pricing, and can help you find the best solution for your requirements quickly and efficiently. Get in touch with our experts today.
