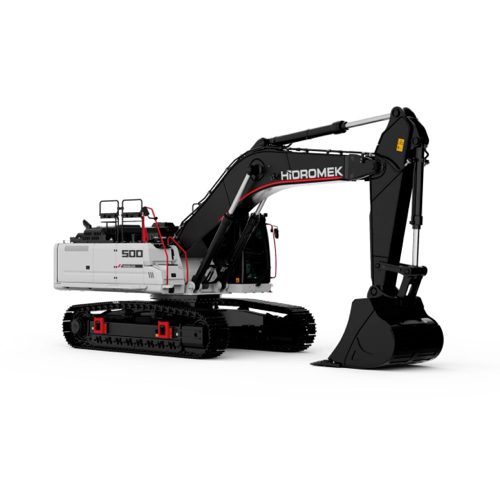

CRAWLER EXCAVATOR – HMK 500 LC HD

Powerful. Strong. Balanced. HMK 500 LC HD crawler excavator provides more durability, maximum performance, operator comfort and easy usage due to the strengthened heavy duty type construction in H4 Series and its developed technology.

With its robust and balanced structure, it offers smooth and constant working for its user in severe field conditions.

Maximum Power 362 HP (270 kW) @2000 rpm

Bucket Digging Force (ISO) 28,500 kgf

Bucket Capacity 3.2 m3

Operating Weight 51,900 kg

Need a Price or Availability?
Simply request a price or speak to our team, we’ll respond within 1 working hour.

📞 01634 867 777
📧 enquiries@langhamcontracting.co.uk

Request a Price

Description
Downloads

HIDROMEK – HMK 500 LC HD

More Sturdier
Owing to the improvements made in arm and boom structure, undercarriage and attachment groups by using more durable materials in H4 Series, HMK 500 LCHD has a more durable structure and offers high performance and long-life usage providing the strength and durability needed in marble quarries, mines and large construction sites.

ENGINE

Maximum Power
362 HP (270 kW) @2000 rpm

Maximum Torque
1650 Nm @1300 rpm (Gross)

Brand – Model
ISUZU-6UZ1X

Type
Water-cooled, 4 cycle, 6 cylinders, line type, direct injection, turbocharger, intercooler, diesel engine

Number of cylinders
6

Bore x Stroke
120 x 145 mm

Displacement
9839 cc

Emission Class
EU: Stage V

HYDRAULIC SYSTEM

Pump Type
Double variable displacement axial piston pumps

Maximum Flow
2 x 366 L/min

Pilot Pump
28.5 L/min

Attachment
330 kgf/cm²

Power Boost
355 kgf/cm²

Travel
330 kgf/cm²

Swing
330 kgf/cm²

Pilot
40 kgf/cm²

SWING SYSTEM

Swing Speed
8.3 rpm

TRAVEL

Maximum Drawbar Pull
35,250 kgf

High Speed
4.70 km/h

Low Speed
2.85 km/h

DIGGING PERFORMANCE

Bucket Digging Force (ISO)
28,500 kgf

Bucket capacity
3.2 m3

Arm Breakout Force (ISO)
27,600 kgf

WORKING DIMENSIONS

Boom Dimension
6300 mm

Arm Dimension
2600 mm

Maximum Digging Depth
6480 mm

Maximum Reach at Ground Level
10490 mm

If you’d like to know more information about the Hidromek HMK 500 LC HD, or need help choosing the right specification for your project, please get in touch with our team. We’re here to provide expert advice, availability, and pricing, and can help you find the best solution for your requirements quickly and efficiently.
