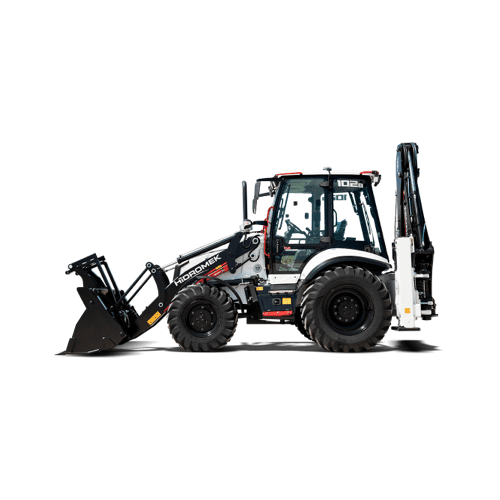

BACKHOE LOADER – HMK 102 B SUPRA K4

The Newest and The Best Solution For Your Work! HİDROMEK’s fourth generation backhoe loaders new K4 Series are your new assistants at your work with their perfect digging and loading performance.

K4 Series backhoe loaders drawing attention with their innovations and superior technology offer high performance with easy and safe usage and comfortable cabin in the fields and in the city.

Maximum Power 100 HP (74,4 kW) @2200 rpm

Maximum Loader Bucket Breakout Force 7,380 kgf

Loader Bucket Capacity 1.1 m³

Operating Weight 9,300 kg

Need a Price or Availability?
Simply request a price or speak to our team, we’ll respond within 1 working hour.

📞 01634 867 777
📧 enquiries@langhamcontracting.co.uk

Request a Price

Description
Downloads

HIDROMEK – HMK 102 B SUPRA K4

K4 Series, designed for severe geographical conditions and heavy working conditions, increases your productivity with its strong structure and efficient hydraulic system providing maximum breakout force even at lower revolutions and having high oil flow.

HİDROMEK K4 Series backhoe loaders facilitating works in excavation, infrastructure, superstructure, agriculture, forestry, landscaping and industrial areas thanks to their use with different attachments such as levelling shovel, forklift, hammer, auger, log, pendulum bucket, snow plow, scrap and paper collection bucket, bottom opening (big bag) bucket, stone collecting bucket, trapeze bucket, ripper and polyp attachment provide the benefits you expect.

20% Faster
K4 series backhoe loaders with accelerated movements through improved loader cylinder design do a lot of work in a short time during loading and unloading operations.

3% More Efficient
K4 Series backhoe loaders produce more work with less fuel as a result of the improvements made in cylinder design.

ENGINE

Brand – Model
Perkins, 904J-E36TA

Maximum Power
100 HP (74,4 kW) @2200 rpm

Displacement
3621 cc

Type
High power and torque output, water cooled turbocharged diesel engine.

Maximum Torque
430 Nm @1500 rpm

Bore & Stroke
ø 98 x 120 mm

Emission Class
EU:Stage 5, US: Tier 4 final

HYDRAULIC SYSTEM

Pressure
255 bar

Type
Closed type hydraulic system with variable displacement piston type pump, renewable flowsharing and valves with regeneration

Main pump flow
163 L/min @2200 rpm

TYRES

Front
16/70 – 20 12 Ply Rating

Rear
16.9 – 28 14 Ply Rating (Optional : 18,4- 26 12 Ply Rating)

DRIVING SPEED

1st Gear
4 km/h

2nd Gear
7 km/h

3rd Gear
9 km/h

4th Gear
15 km/h

5th Gear
24 km/h

6th Gear
40 km/h

LOADER PERFORMANCE

Maximum loader bucket breakout force
7,380 kgf

Loader Bucket Capacity
1.1 m³

Maximum loading arm breakout force
7,380 kgf

Lifting capacity to maximum height
3,660 kg

BACKHOE PERFORMANCE

Backhoe Bucket Capacity
0.18 m³

Maximum backhoe bucket breakout force
7,020 kgf

Maximum arm breakout force
3,160 kgf

OPERATING WEIGHT

Operating Weight
9,300 kg

TRANSMISSION

Type
Autoshift transmission for heavy duty service

Number of Gear
6 forward, 3 reverse gears with Lock-Up

If you’d like to know more information about the Hidromek HMK102 B SUPRA, or need help choosing the right specification for your project, please get in touch with our team. We’re here to provide expert advice, availability, and pricing, and can help you find the best solution for your requirements quickly and efficiently.
