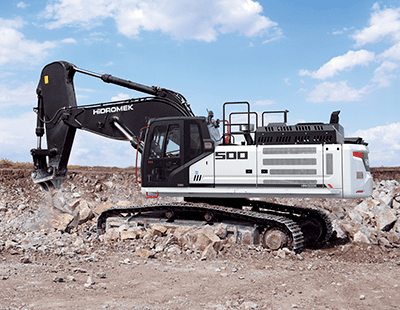

SPECIAL PURPOSE EXCAVATOR - HMK 500 R - Image 2

SPECIAL PURPOSE EXCAVATOR – HMK 500 R

Powerful. Strong. Balanced. HMK 500 R special purpose excavator provides more durability, maximum performance, operator comfort and easy usage due to the strengthened heavy duty type construction in H4 Series and its developed technology.

With its robust and balanced structure, it offers smooth and constant working for its user in severe field conditions.

Maximum Power 362 HP (270 kW) @2000 rpm

Maximum Torque 1650 Nm @1300 rpm

Ripper Digging Force (ISO) 48,300 (52,700) kgf

Operating Weight 55,100 kg

Need a Price or Availability?
Simply request a price or speak to our team, we’ll respond within 1 working hour.

📞 01634 867 777
📧 enquiries@langhamcontracting.co.uk

Request a Price

Description
Downloads

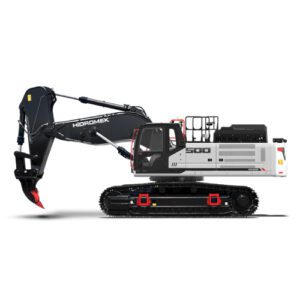

HIDROMEK – HMK 500 R

More Sturdier
Owing to the improvements made in arm and boom structure, undercarriage and attachment groups by using more durable materials in H4 Series, HMK 500 R has a more durable structure and offers high performance and long-life usage providing the strength and durability needed in marble quarries, mines and large construction sites.

DIGGING PERFORMANCE

Arm Crowd Force (ISO)
48,700 (53,200) kgf

Ripper Digging Force (ISO)
48,300 (52,700) kgf

ENGINE

Brand – Model
ISUZU-6UZ1X

Type
Water-cooled, 4 cycle, 6 cylinders, line type, direct injection, turbocharger, intercooler, diesel engine

Maximum Power
362 HP (270 kW) @2000 rpm

Maximum Torque
1650 Nm @1300 rpm

Displacement
9839 cc

Number of cylinders
6

Bore x Stroke
ø 120 mm x 145 mm

Emission Class
EU: Stage V

HYDRAULIC SYSTEM

Type
Double variable displacement axial piston pumps

Maximum Flow
2 x 346 L/min

Pilot Pump
Gear Type, 28.5 L/min

Attachment
330 kgf/cm2

Power Boost
355 kgf/cm2

Travel
330 kgf/cm2

Swing
300 kgf/cm2

Pilot
40 kgf/cm2

SWING SYSTEM

Swing Speed
8.3 rpm

TRAVEL

Maximum Drawbar Pull
35,250 kgf

High Speed
4.70 km/h

Low Speed
2.85 km/h

WORKING DIMENSIONS

Minimum Swing Radius
3640 mm

Maximum Digging Reach
7940 mm

Maximum Reach at Ground Level
7560 mm

Boom Dimension
5100 mm

Arm Dimensions
1800 mm

Maximum Digging Depth
3280 mm

OPERATING WEIGHT

Operating Weight
55,100 kg

If you’d like to know more information about the Hidromek HMK 500 R, or need help choosing the right specification for your project, please get in touch with our team. We’re here to provide expert advice, availability, and pricing, and can help you find the best solution for your requirements quickly and efficiently.
