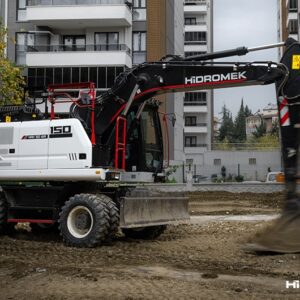

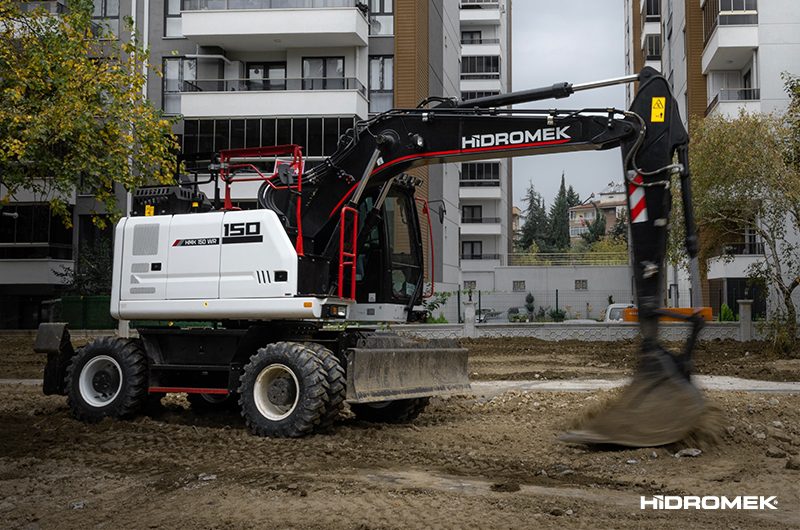

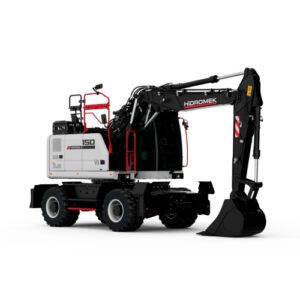

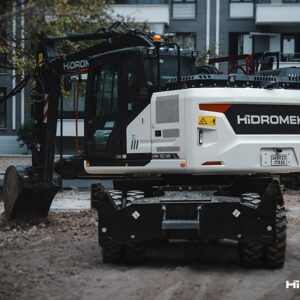

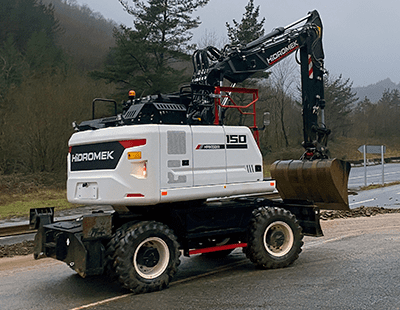

WHEEL EXCAVATOR – HMK 150 WR

Ensuring comfortable operating in narrow fields thanks to its short swing radius, HMK 150 W R provides an enjoyable and smooth working opportunity in urban or off-road areas with its durable and balanced structure, easy usage, operator comfort and safe working environment.

Maximum Power 141 HP (105 kW) @2000 rpm

Bucket Digging Force (ISO) 10,800 kgf

Standard Bucket Capacity 0.6 m3

Operating Weight 16,300 kg

Need a Price or Availability?
Simply request a price or speak to our team, we’ll respond within 1 working hour.

📞 01634 867 777
📧 enquiries@langhamcontracting.co.uk

Request a Price

HIDROMEK – HMK 150 WR

Versatile
Providing comfortable working opportunity in many fields thanks to its shorter tail structure compared to standard designed machines and the advantage of the usage with different attachments, HMK 150 WR wheel excavator makes work easier by providing maximum performance, easy usage and operator comfort through its high technology and durable structure.

Operational
With its fast hydraulic movements thanks to the developed hydraulic system design of H4 Series, HMK 150 WR ensures operations in different fields to be completed in a short time with low cost thanks to its work cycle times, short swing radius and working dimensions.

Innovative
HMK 150 WR wheel excavator which has a superior technology and equipment, offers an ergonomic working environment by providing maximum comfort to its users through its advantages of easy and safe usage.

ENGINE

Brand – Model
DEUTZ TCD 4.1

Maximum Power
141 HP (105 kW) @2000 rpm

Type
Water cooled, 4 cycle

Maximum Torque
550 Nm @1600 rpm

Displacement
4038 cc

Number of cylinders
4

Bore x Stroke
101 mm x 126 mm

Emission Class
Stage V / Tier 4 Final (EU/EPA)

HYDRAULIC SYSTEM

Type
Double variable displacement axial piston pumps

Maximum Flow
2 x 160 L/min

Pilot Pump
20 L/min

Attachment
330 kgf/cm²

Power Boost
360 kgf/cm²

Travel
370 kgf/cm²

Swing
260 kgf/cm²

Pilot
40 kgf/cm²

SWING SYSTEM

Swing Speed
13 rpm

WORKING DIMENSIONS

Maximum Digging Depth
5040 mm

Maximum Reach at Ground Level
8000 mm

TRAVEL

Maximum Drawbar Pull
8.123 kgf

High Speed
33 km/h

Low Speed
8.5 km/h

DIGGING PERFORMANCE

Bucket Digging Force (ISO)
10.800 kgf

Arm Breakout Force (ISO)
7.800 kgf

Standard Bucket Capacity
0.6 m3

OPERATING WEIGHT

Operating Weight
16,300 kg

If you’d like to know more information about the Hidromek HMK150 WR, or need help choosing the right specification for your project, please get in touch with our team. We’re here to provide expert advice, availability, and pricing, and can help you find the best solution for your requirements quickly and efficiently.
