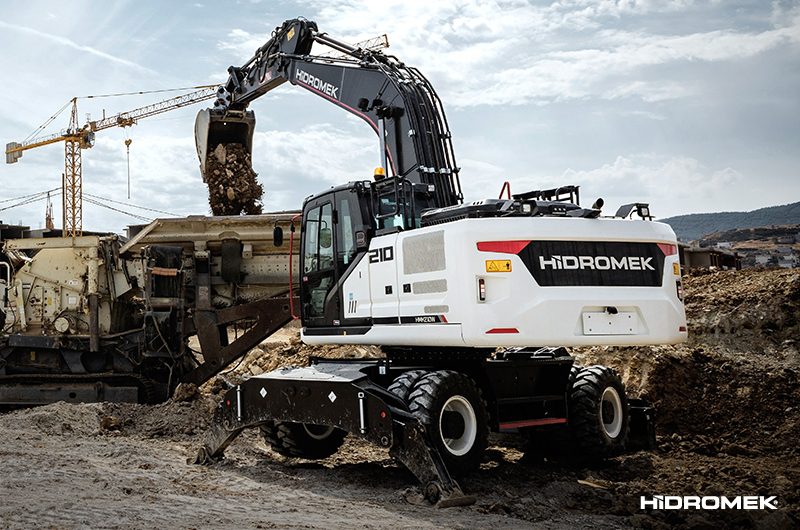

WHEEL EXCAVATOR – HMK 210 W

With their reinforced heavy duty construction produced at HİDROMEK’s modern production facilities and going through sensitive quality-control processes, H4 Series excavators have excellent durability.

Maximum Power 172 HP (128 kW)@2000 rpm

Bucket Digging Force (ISO) 15,900 kgf

Standard Bucket Capacity 0.9 m3

Operating Weight 22,500 kg

Need a Price or Availability?
Simply request a price or speak to our team, we’ll respond within 1 working hour.

📞 01634 867 777
📧 enquiries@langhamcontracting.co.uk

Request a Price

HIDROMEK – HMK 210 W

Shaped with Technology
Electronic system of H4 Series excavators designed to protect the engine and hydraulic components to provide fuel saving and superior performance.

Automatic Stop System
In the new series, automatic stop system through configurable idling and stopping times provides fuel saving by stopping the engine after the machine is on idle. Automatic stop system in H4 Series helps to decrease the operational costs to minimum, and contributes to saving the environment.

Safe Fuel Transfer Pump
“Safe fuel transfer pump” added to H4 Series stops the pump automatically when the tank is full and this feature gets activated also when the pump does not transfer fuel for 30 seconds, and ensures that the pump stops automatically.

8″ Touch Control Panel
8 inch touch control panel is positioned ergonomically at a point that the operator can easily reach it. Touch control panel having high quality hardware and a large screen easily enables to control the machine features and access to machine information.

Power Boost Technology
In H4 Series, power boost technology gets activated automatically in the conditions when the machine needs extra power, and ensures that the machine has the proper performance for the work.

ENGINE

Brand – Model
ISUZU-4HK1X

Maximum Power
172 HP (128 kW)@2000 rpm

Type
Water cooled diesel engine, 4 cycles

Maximum Torque
670 Nm @1600 rpm

Displacement
5193 cc

Number of cylinders
4

Bore x Stroke
115 x 125 mm

Emission Class
EU: Stage V

HYDRAULIC SYSTEM

Type
2 axial piston type pumps with double variable displacement and inclined plate

Maximum Flow
2 x 233 L/min

Pilot Pump
Gear type, 20 L/min

Attachment
350 kgf/cm2

Power Boost
370 kgf/cm2

Travel
370 kgf/cm2

Swing
306 kgf/cm2

Pilot
40 kgf/cm2

SWING SYSTEM

Swing Speed
11.90 rpm

WORKING DIMENSIONS

Maximum Digging Depth
5760 mm

Maximum Reach at Ground Level
9170 mm

TRAVEL

Maximum Drawbar Pull
11,110 kgf

High Speed
31 km/h

Low Speed
7.7 km/h

DIGGING PERFORMANCE

Bucket Digging Force (ISO)
15,900 kgf

Arm Breakout Force (ISO)
12,600 kgf

Standard Bucket Capacity
0.9 m3

OPERATING WEIGHT

Operating Weight
22,500 kg

If you’d like to know more information about the Hidromek HMK 210 W, or need help choosing the right specification for your project, please get in touch with our team. We’re here to provide expert advice, availability, and pricing, and can help you find the best solution for your requirements quickly and efficiently.
