VOLVO ECR88D

VOLVO ECR88D – SHORT RADIUS EXCAVATOR

Heavy-Duty Performance in Restricted Environments

The Volvo ECR88D short radius excavator is designed for contractors who require maximum performance in confined working areas.

As one of the largest machines in the short radius range, the ECR88D delivers outstanding digging power, lifting capacity, and stability while maintaining a reduced tail swing profile.

---

Technical specifications for ECR88D

Here are the key specifications for this product model. Want more details? Download the brochure or contact us.

Engine
Volvo D2.6H

Gross Power
43 kW

Net Power
41 kW

…at Engine Speed
2,000 rpm

Operating Weight
8,620 – 9,980 kg

Bucket Capacity
0.08 – 0.33 m³

Travel Speed, Low / High
2.6 / 4.9 km/h

Slewing Speed
9.3 rpm

Breakout Force
50.7 kN

Tear Out Force (Arm Breakout Force)
38.9 kN

Overall Width
2,300 mm

Overall Length
6,370 mm

Main Hydraulic Pump Max. Flow
190 l/min

Boom Swing Angle, Left / Right
70 / 60 °

---

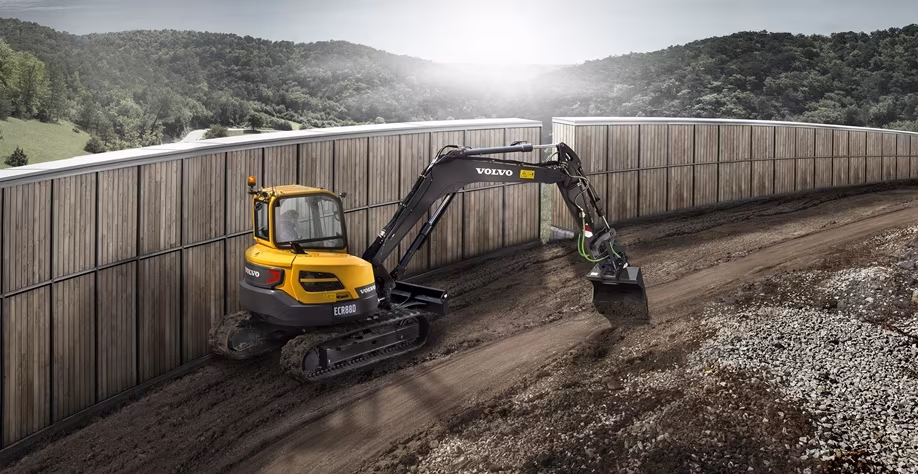

Performance & Productivity

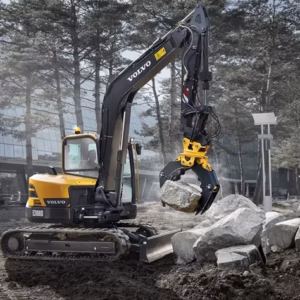

The ECR88D offers powerful hydraulics and strong breakout force, enabling high productivity across demanding excavation and material handling tasks. Its robust undercarriage and balanced design provide excellent stability during lifting and digging operations.

Fast cycle times and predictable control allow operators to maintain efficiency even in challenging site conditions.

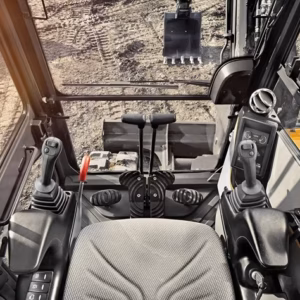

Operator Comfort & Safety

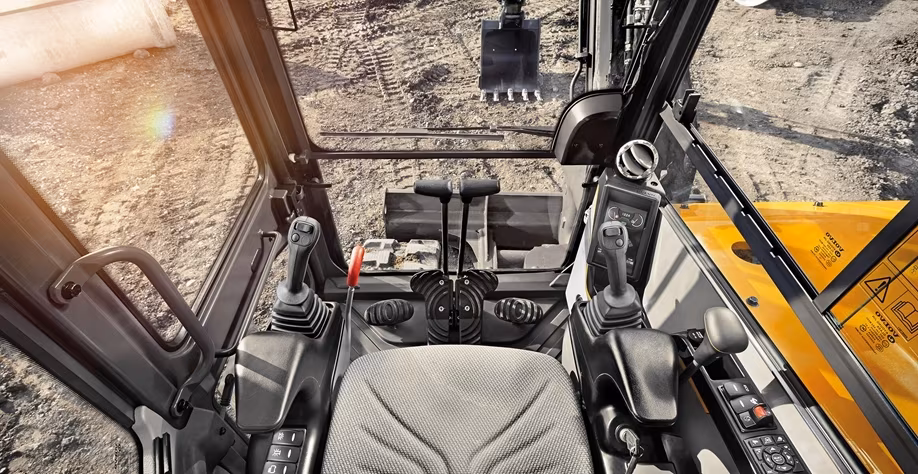

A spacious cab with excellent visibility supports safe and comfortable operation. Intuitive controls and smooth machine response help reduce fatigue and improve productivity over long working hours.

The short radius design enhances safety by keeping the rear of the machine within the track width during slewing.

Durability & Build Quality

Built for heavy-duty use, the ECR88D features reinforced structures and protected components designed to withstand tough working environments. Volvo’s engineering ensures long service life and dependable performance.

Efficiency & Operating Costs

Efficient engine and hydraulic systems help reduce fuel consumption without compromising output. Simplified servicing and durable components support low total cost of ownership.

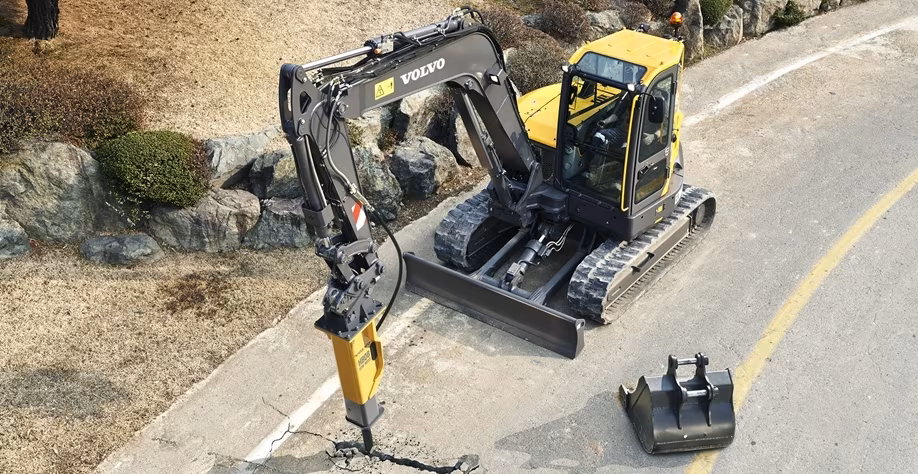

Applications

• Infrastructure and civil engineering
• Utilities and roadworks
• Recycling and material handling
• Urban construction projects

Why Choose the ECR88D?

The ECR88D delivers uncompromising performance, stability, and safety in a short radius excavator, making it ideal for demanding urban and infrastructure applications.
