SPECIAL PURPOSE EXCAVATOR – HMK 390 LC LR

Being produced with developed hydraulic system design, HİDROMEK’s new H4 Series excavators offer an outstanding performance by working faster, more productively and more efficiently.

H4 Series excavators produce more work with less fuel; hence, they are more profitable for their users than ever.

Maximum Power 281 HP (210 kW) @1900 rpm

Maximum Torque 1080 Nm @1500 rpm

Maximum Reach at Ground Level 16870 mm

Operating Weight 42,100 kg

Need a Price or Availability?
Simply request a price or speak to our team, we’ll respond within 1 working hour.

📞 01634 867 777
📧 enquiries@langhamcontracting.co.uk

Request a Price

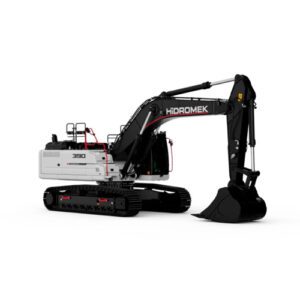

HIDROMEK – HMK 390 LC LR

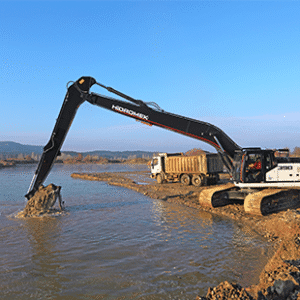

HİDROMEK, which find solutions for different types of applications, satisfy the expectation of the clients on this segment with its special model HMK 390 LC LR designed for ditch cleanings and sand quarries.

H4 Series HMK 390 LC LR introduces innovations such as improved performance, ease of control and versatility. It allows the operator to have perfect command ability and reliability and ensures low fuel consumption, easy maintenance and operator comfort. Along with other pieces of equipment, it is the leader in its class.

DIGGING PERFORMANCE

Bucket Digging Force
10.400 kgf

Bucket Capacity
1,0 m3

ENGINE

Brand – Model
ISUZU-6HK1X

Type
Water-cooled, 4 cycle

Maximum Power
281 HP (210 kW) @1900 rpm

Maximum Torque
1080 Nm @1500 rpm

Displacement
7790 cc

Number of cylinders
6

Bore x Stroke
ø 115 mm x 125 mm

Emission Class
Stage V-EU

HYDRAULIC SYSTEM

Type
Double variable displacement axial piston pumps

Maximum Flow
2 x 300 L/min

Pilot Pump
Gear, 28.5 L/min

Attachment
350 kgf/cm2

Travel
350 kgf/cm2

Swing
285 kgf/cm2

Pilot
40 kgf/cm2

SWING SYSTEM

Swing Speed
9.4 rpm

TRAVEL

Maximum Drawbar Pull
30,470 kgf

High Speed
5.0 km/h

Low Speed
2.9 km/h

WORKING DIMENSIONS

Maximum Digging Depth (2440 mm level)
11770 mm

Minimum Swing Radius
5510 mm

Maximum Vertical Digging Depth
11280 mm

Maximum Dumping Clearance
12680 mm

Minimum Dumping Clearance
3790 mm

Maximum Digging Reach
17010 mm

Maximum Reach at Ground Level
16870 mm

Boom Dimension
10000 mm

Arm Dimensions
6000 mm

Maximum Digging Depth
11870 mm

Maximum Dumping Height
12680 mm

OPERATING WEIGHT

Operating Weight
42,100 kg
