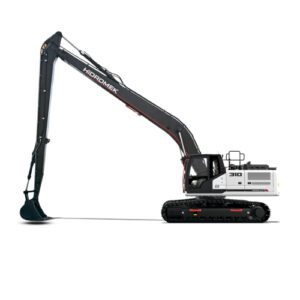

SPECIAL PURPOSE EXCAVATOR – HMK 310 LC LR

Being produced with developed hydraulic system design, HİDROMEK’s new H4 Series excavators offer an outstanding performance by working faster, more productively and more efficiently.

H4 Series excavators produce more work with less fuel; hence, they are more profitable for their users than ever.

Maximum Power 264 HP (197 kW) @1800 rpm

Maximum Torque 1050 Nm @1500 rpm

Maximum Reach at Ground Level 18240 mm

Operating Weight 35,000 kg

Need a Price or Availability?
Simply request a price or speak to our team, we’ll respond within 1 working hour.

📞 01634 867 777
📧 enquiries@langhamcontracting.co.uk

Request a Price

HIDROMEK – HMK 310 LC LR

Producing solutions for different applications, HİDROMEK fully meets customer expectations in this segment with the HMK 310 LC LR model developed specifically for canal cleaning, stream improvement and sand quarries.

ENGINE

Brand – Model
ISUZU-6HK1X

Type
Water-cooled, 4 cycle, 6 cylinders, line type direct injection, turbocharger, intercooler, electronic diesel engine

Maximum Power
264 HP (197 kW) @1800 rpm

Maximum Torque
1050 Nm @1500 rpm

Displacement
7790 cc

Number of cylinders
6

Bore x Stroke
115 mm x 125 mm

Emission Class
Stage V-EU

HYDRAULIC SYSTEM

Type
2 axial piston type pumps with double variable displacement and inclined plate

Maximum Flow
2 x 266 L/min

Pilot Pump
Gear type, 30.5 L/min

Attachment
350 kgf/cm²

Power Boost
380 kgf/cm²

Travel
350 kgf/cm²

Swing
285 kgf/cm²

Pilot
40 kgf/cm²

SWING SYSTEM

Swing Speed
10.4 rpm

TRAVEL

Maximum Drawbar Pull
25,460 kgf

High Speed
5.1 km/h

Low Speed
3.0 km/h

WORKING DIMENSIONS

Maximum Digging Depth (2440 mm level)
14140 mm

Minimum Swing Radius
5930 mm

Maximum Vertical Digging Depth
12570 mm

Maximum Dumping Clearance
12550 mm

Minimum Dumping Clearance
2500 mm

Maximum Digging Reach
18360 mm

Maximum Reach at Ground Level
18240 mm

Boom Dimension
10300 mm

Arm Dimensions
7800 mm

Maximum Digging Depth
14250 mm

OPERATING WEIGHT

Operating Weight
35,000 kg

If you’d like to know more information about the Hidromek HMK 310 LC LR, or need help choosing the right specification for your project, please get in touch with our team. We’re here to provide expert advice, availability, and pricing, and can help you find the best solution for your requirements quickly and efficiently.
